MultiTex® Ring – ePTFE Flat Gasket
KWO® MultiTex® Ring is produced from 100% pure expanded PTFE without any pigments, inks or adhesives, and therefore especially suitable for clean applications.
The flexible material adapts well to sealing surfaces, compensates irregularities and seals at very low stresses.
Suitable for use in metallic flanged, as well as stress sensitive connections. Seals most chemicals across the whole pH range (0-14).
|Material||100% biaxial expanded PTFE (ePTFE) without fillers, without pigments or ink|
|Chemical resistance||In the entire pH range (pH 0-14, except molten alkali metals and elemental fluorine)|
|Temperature range||-268°C (-450°F) up to +270°C (+518°F), short-term +315°C (+600°F)|
|Pressure range||Vacuum up to +200bar (3000psi) depending on the installation situation*|
Note: temperature and pressure guides cannot necessarily be used simultaneously.
KWO® MultiTex® Ring
|Nominal Diameter||Pressure Class|
|DN 10 – DN 600||PN 10 – PN 40|
To order, please use the following text
MultiTex Ring, _ _ _ x _ _ _ x _ _ mm, pieces
(ODØ) (IDØ) (Thickness)

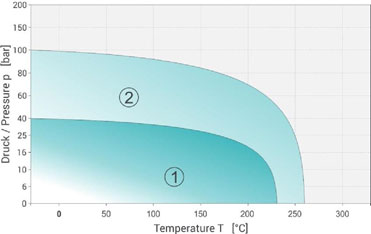

The p-T diagram indicates the service limits considering the simultaneous influence of pressure and temperature.
Range 1: Typical service limits
Range 2: Maximum application limits, after technical verification

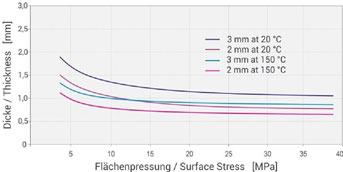

|QMIN (0,01)||28 Mpa||DIN EN 13555|
|QS MIN (0,01)||<<10 Mpa||DIN EN 13555|
|PQR(30 MPa 20°C)||0,94||DIN EN 13555|
|PQR(30 MPa 150°C)||0,67||DIN EN 13555|
