Cellflon Brown – ePTFE Gasket Tape

Cellflon Brown – ePTFE Gasket Tape

KWO® CellFlon® brown is a gasket tape made from expanded PTFE with a silicate filler and a modified structure.

By adding the silicate and through the patented CellFlon® processing method the mechanical properties of the gasket tape are considerably improved.

The result is a substantially reduced cold-flow tendency, a clearly improved recovery and excellent sealing properties in systems with temperature cycles.

The tape features a self-adhesive backing for easy installation. The used glue has a very high adhesive force.

Advantages

  • High residual thickness at time of installation
  • Small widening
  • Highest recovery properties
  • Excellent adaptability to all surfaces
  • Excellent sealing characteristics, even in case of alternate loadings

Properties

  • High mechanical properties
  • Reduced cold flow and improved recovery
  • Non-ageing
  • Non-flammable

Applications

  • Sealings for tanks, tube flanges
  • Heat exchangers, compensators
  • Apparatus engineering
  • Machine housing
  • Flue gas plants

Certificates

  • TA-Luft regulation and blow out safety acc. to VDI 2200
  • Gasket characteristics pursuant to DIN EN 13555

Technical Data

Material 100 % expanded PTFE (ePTFE) with silicate fillers and brown-coloured – modified by CellFlon®-procedure; self-adhesive
Chemical resistance pH range from 0 to 12; high chemical resistance (except molten alkali metals and elemental fluorine)
Temperature range Recommended temperature range: from -160°C to +200°C; material heat resistant up to +315°C
Pressure resistance Resistant within the usual pressure range of standard flanges up to 40 bars; suitable for vacuum applications (depends upon the concrete installation conditions)

Quality assurance

The KWO Quality Management is certified according to DIN EN ISO 9001. Our suppliers are also integrated in this quality system. We use exclusively high quality raw materials in the fabrication of our products, which provide the highest level of safety and reliability.

teflon-logo
TUV-SUD

Available Dimensions

Dimensions*
[mm]

Spool length [m]

10

25

50

9×3

X

X

X

14×3

X

X

19×3

X

X

To order, please use the following text

CellFlon Tape Brown _ _ x _ _ mm – _ _ m, quantity in meter
(width) (thickness) (spool length)

temp

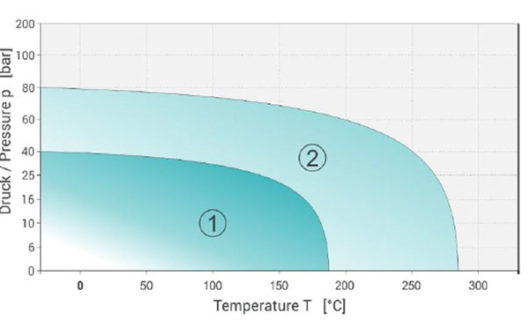

The p-T diagram indicates the service limits considering the simultaneous influence of pressue and temperature.

Range 1: Typical service limits
Range 2: Maximum application limits, after technical verification

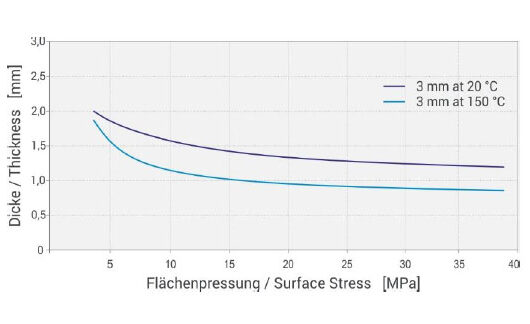

surface-trace
